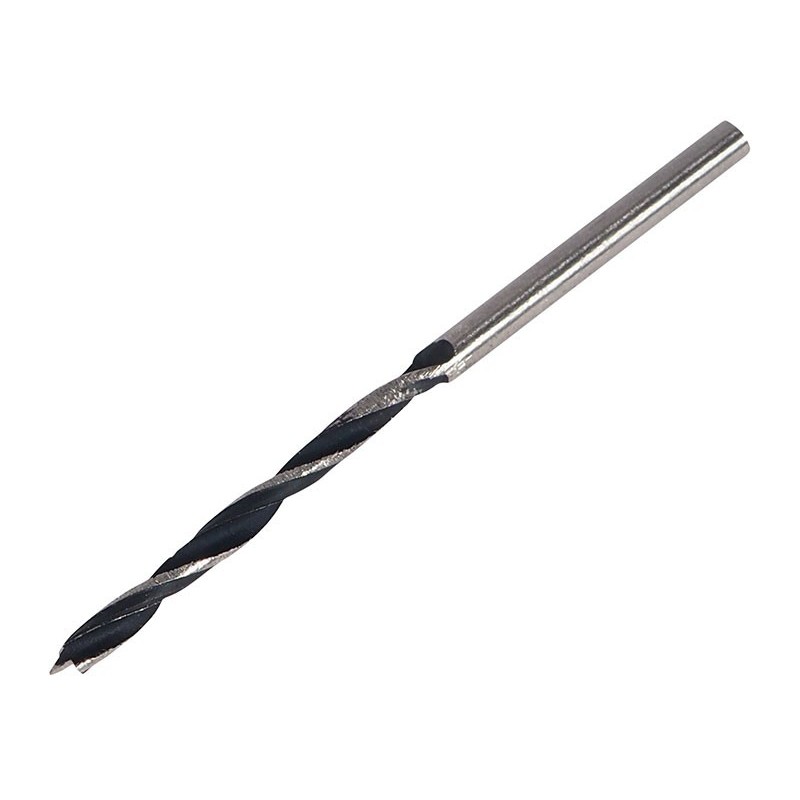

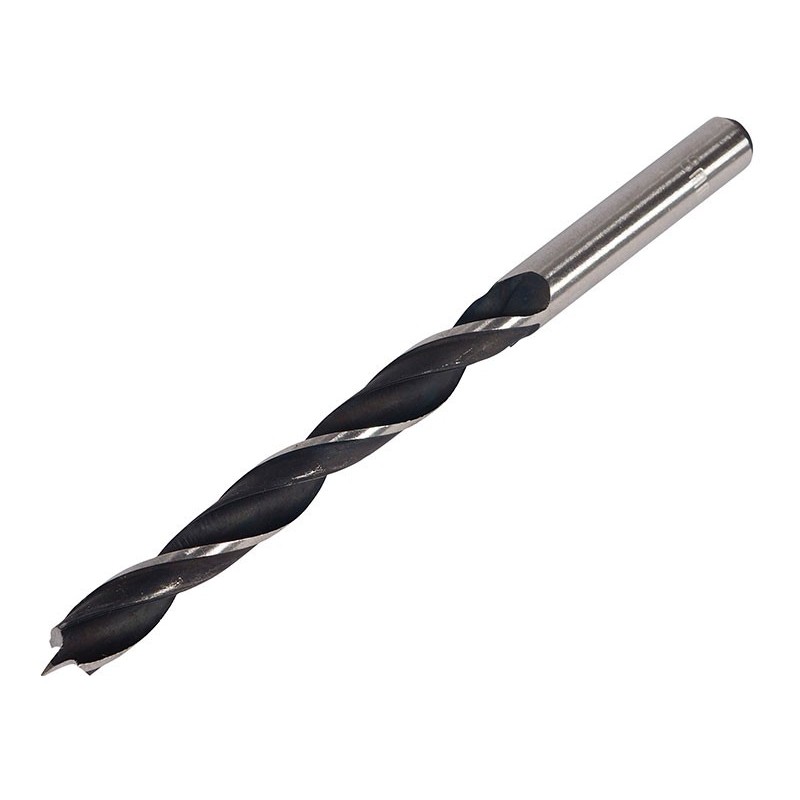

Wkret-met WDS Drill Bits For Wood

Particularly sharp. Particularly high-performance!

• For drilling:
• softwoods and hardwoods
• chipboard
• fibre board panels

Also suitable for drilling dowel holes.

Heat resistance up to 250 °C:

Spot precision: Thanks to centering tip.

Sharp: Thanks to precision ground-shape.

Technical information

Manufacturer code	Diameter (mm)	General length/Length of the drilling part (mm)	Rpm
616003001	3	61/33	2700	2300	1900	1600
616004001	4	75/43	2000	1800	1400	1200
616005001	5	86/52	1600	1400	1100	1000
616006001	6	93/57	1300	1200	1000	800
616007001	7	109/69	1200	1000	800	700
616008001	8	117/75	1000	900	700	600
616009001	9	125/81	900	800	600	550
616010001	10	133/87	800	700	600	500
616011001	11	142/94	700	650	550	450
616012001	12	151/101	650	600	500	400
616013001	13	151/101	600	550	450	350
616014001	14	160/108	550	500	400	350
616015001	15	169/114	550	450	400	300
616016001	16	178/120	500	450	350	300
616018001	18	178/120	450	400	300	250
616020001	20	178/120	400	350	250	200
