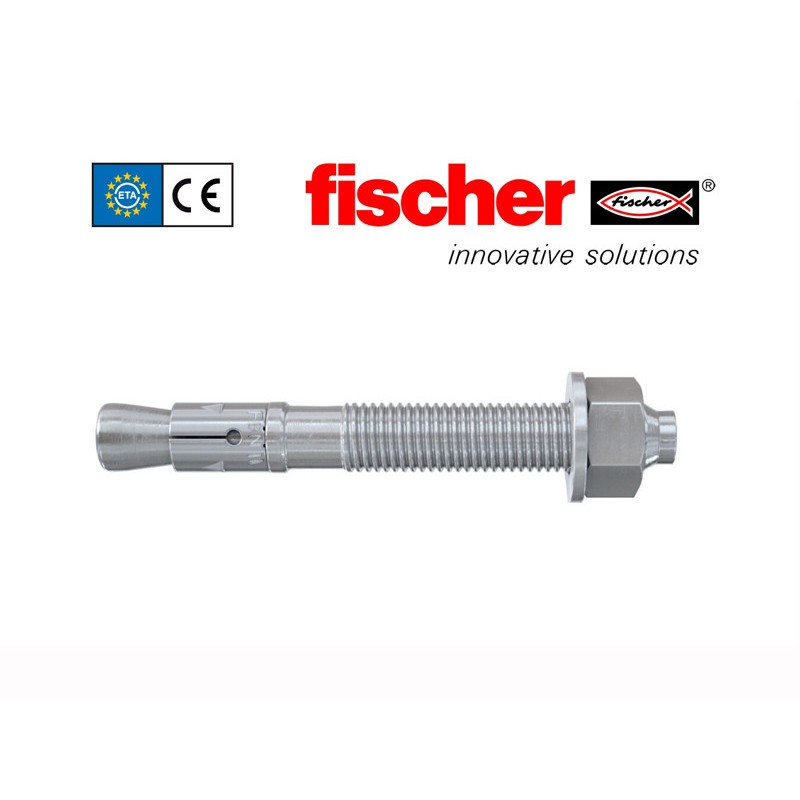

Fischer bolt anchor FBN II - ф10 х 96

Name: Fischer bolt anchor FBN II - ф10 х 96
Brand: Fischer
SKU: 40851
Price: 0.9 EUR
Availability: InStock

КОД:40851

Review (0)

€0.90

Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)

Top Features

The FBN II achieves maximum load-bearing capacity with standard anchorage depth. This means: fewer fixing points and smaller anchor plates.
If the reduced anchorage depth is used, then this lowers the drill hole depth and simplifies installation.
Component tolerances are balanced out with the long thread. In addition, FBN II is also suitable for stand-off installations. This increases flexibility.
Simple assembly due to few taps and minimal slippage.
The drive-in pin protects the thread from damage. This saves time during installation and removal.

Product Description

The fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The zinc-plated steel version of the bolt anchor is suitable for fixing railings, cable trays, and consoles in internal areas.

Advantages

The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required.
The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility.
Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation.
The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.

Technical Data

ETA-approval
Drill diameter	d0	10	[mm]
Min. drill hole depth for through fixings	h2	88	[mm]
Anchor length	l	95	[mm]
Max. usable length hef,max./hef,min.	tfix	20 / 30	[mm]
Thread	Ø x length	M 10 x 56	[mm]
Width across nut	SW	17	[mm]
Packaging		Folding box
Amount		50	[St.]
GTIN (EAN-Code)		4048962087413
