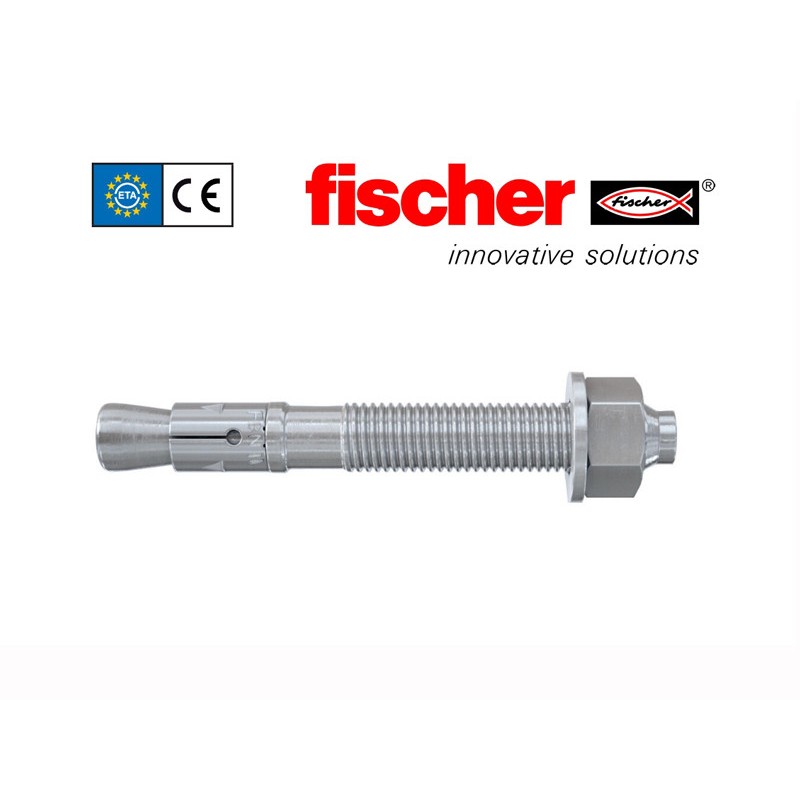

Fischer bolt anchor FBN II - ф10 х 106

checkIn Stock Check by phone where is available
Item SKU: 40854

1.86лв.

All Prices are with tax incl

Qty:

Product was successfully added to your wishlist

Fischer bolt anchor FBN II - ф10 х 106
Qty.:
Ok, I got it
  • check Прибавете продукти на стойност най-малко 10.00 лв. в количката
  • check Free delivery to an office of Speedy and Econt for shipments over BGN 150
  • check 90% of the items are in stock.
  • check Secure shopping. Order with confidence.
  • check Payment by Cash on delivery or Wire transfer.
  • check 15 working days right of return.

Top Features

  • The FBN II achieves maximum load-bearing capacity with standard anchorage depth. This means: fewer fixing points and smaller anchor plates.
  • If the reduced anchorage depth is used, then this lowers the drill hole depth and simplifies installation.
  • Component tolerances are balanced out with the long thread. In addition, FBN II is also suitable for stand-off installations. This increases flexibility.
  • Simple assembly due to few taps and minimal slippage.
  • The drive-in pin protects the thread from damage. This saves time during installation and removal.

Product Description

The fischer bolt anchor FBN II is a steel anchor for cost-effective fixings in non-cracked concrete. Due to the long thread and the two anchorage depths, the fischer bolt anchor FBN II can be used in a particularly flexible manner. The bolt anchor is also suitable for stand-off installation as well as pre-positioned and in push-through installation. The zinc-plated steel version of the bolt anchor is suitable for fixing railings, cable trays, and consoles in internal areas.

Advantages

  • The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required.
  • The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
  • The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility.
  • Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation.
  • The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.

Technical Data

ETA-approval
Drill diameter10[mm]
Min. drill hole depth for through fixings98[mm]
Anchor length105[mm]
Max. usable length hef,max./hef,min.30 / 40[mm]
ThreadM 10 x 66[mm]
Width across nut17[mm]
PackagingFolding box
Amount50[St.]
GTIN (EAN-Code)4006209408544
Legend   =  Permission Available

Diameter∅10.0 mm
Drilling diameter10 mm
Length106 mm
