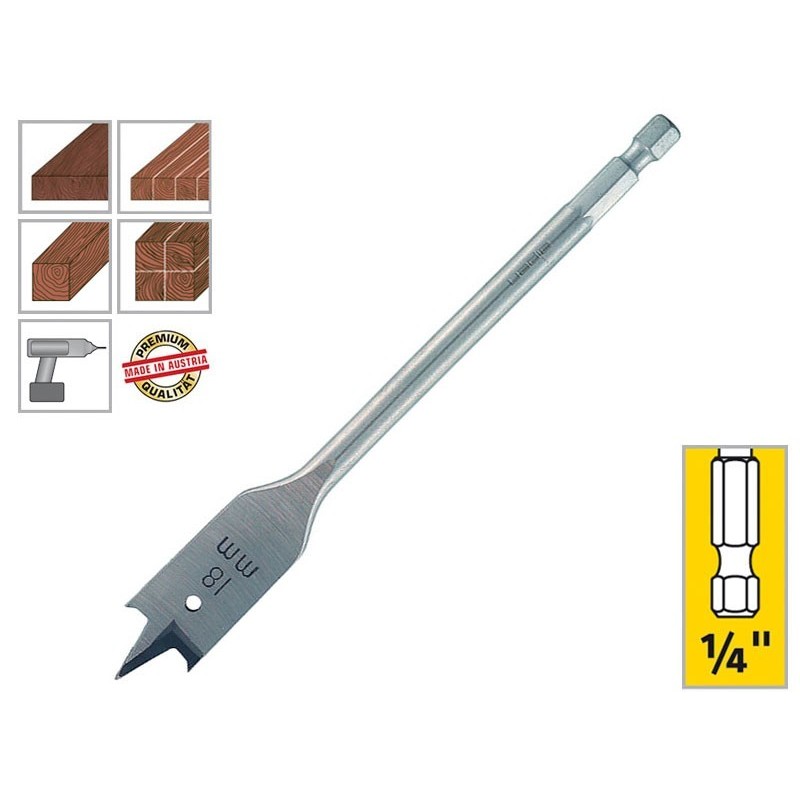

Alpen Flat Wood Bits

Fast and precise cut, spot precision drilling!

• For drilling:
• softwoods and hardwoods
• chipboard
• beam

Heat resistance up to 250 °C.

Spot precision: Thanks to centering tip.

Sharp: Thanks to precision-ground shape.

Technical information

• Standardization: DIN 3126-Е 6.3
• Bit holder: ISO 1173

Manufacturer code	Diameter (mm)	General length (mm)	Rpm
237006001	6	152	1700	1000	800	650
237008001	8	152	1450	900	700	550
237010001	10	152	1300	750	600	500
237012001	12	152	1150	700	550	450
237013001	13	152	1100	650	550	400
237014001	14	152	1050	650	500	400
237016001	16	152	1000	600	450	400
237018001	18	152	900	550	450	350
237020001	20	152	850	500	400	350
237022001	22	152	800	500	400	300
237024001	24	152	800	500	400	300
237025001	25	152	750	450	350	300
237026001	26	152	-	-	-	-
237028001	28	152	700	400	350	300
237030001	30	152	700	400	350	250
237040001	40	152	600	350	300	200
